CAD/CAM LAB
The objective is to develop of designs of various mechanical components using both 2D and 3D Software’s, and manufacture the required part. The lab is available to graduate the students in the fields of Computer Aided Design and Computer Aided Manufacturing. At Under graduation level aid is given for the students to model the complete part. The basic knowledge can be used for successful accomplishment of project works. At post graduation level, the students can make use of advanced modules in the design software for their research work.
For the designed part student generates NC program with different CAM software packages, simulates the program for validation and manufactures parts with CNC machines. The CNC machines available in the laboratory can be utilized for advanced manufacturing research.
CAD/CAM Lab Overview |
Area |
190 Sq.m |
Established in the year |
2002 |
Total investment |
67,57,332 |
R&D Facilities: |
- CATIA V5R24 software with advanced modules
- ANSYS Academic and Industry version 18
- MATLAB R19A
- XL TURN CNC Slant Bed Bench Turning Centre
- XL MILL Bench Milling Machine With 6 Station Automatic Tool Changer (ATC)
- 6 Axis Articulated Robot (ARISTO MODEL)
|
List of equipment |
- LENOVO Desktops
- Hp Desktops
- 6kv Ups
- CNC Lathe Machine (XL TURN)
- CNC MILLING Machine (XLMILL))
- 6 Axis Articulated Robot (ARISTO MODEL)
|
List of Software |
1. ANSYS Academic and Industry version 18
2. MATLAB R19A
3.CATIA V5 R24
4.Iron cad V8
5. Cadian-2004 Mechanical
6.Esprit Cam |
Faculty in-charge |
A. Nageswara Rao Assistant. Professor |
Sr.Technician |
P.Guna Sunadara Reddy |
Lab Assistant |
Ch. Sankar Rao |
Laboratory Utilization:
S. No |
Laboratory Name |
Branch(s) |
|
Computer Programming Lab |
B.Tech I Semester (Mechanical) |
|
Computer Programming Lab |
B.Tech I Semester (ASE) |
|
CAEG LAB |
B.Tech II Semester (Mechanical) |
|
CAEG LAB |
B.Tech II Semester (ASE) |
|
Modelling Lab |
B.Tech IV Semester(ME) |
|
CAD/CAM Lab |
B.Tech VII Semester(ME) |
|
ACMA LAB |
B.Tech VII Semester(ASE) |
|
ADP LAB |
B.Tech VII Semester(ASE) |
|
LIST OF EXPERIMENTS CAD/CAM Lab
1. Assemble Modeling (At least three examples)
2. Analysis of trusses and beams.
3. Plane stress, plane strain analysis.
4. Analysis of Axi-symmetric solids.
5. Analysis of 3D solids.
6. Estimation of natural frequencies and mode shapes for simple problems.
7. Steady state heat transfer Analysis.
8. Development of NC code using CAM packages.
9. Machining of simple components on NC lathe and mill by transferring NC Code from a CAM package.
10. Robot programming, simulation and execution |

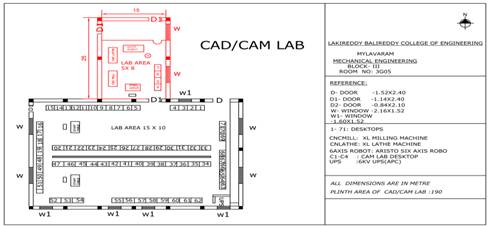

CADCAM LAB LAYOUT

|
