Metallurgy Lab

Objective:
The objective of this lab is to determine the microstructure of both ferrous and non-ferrous materials and also to perform various heat treatment processes. It also has facilities for developing new materials, capturing microstructure and determining mechanical and wear characteristics for various materials.
Outcome:
After completion of the course students will be able to:

  1. Analyze the properties of materials based on microstructure.
  2. Perform hardness test and heat treatment of steels.


R&D Facilities:

    • Electronoic Tensometer
    • Wear and Friction monitor
    • Melting Furnace

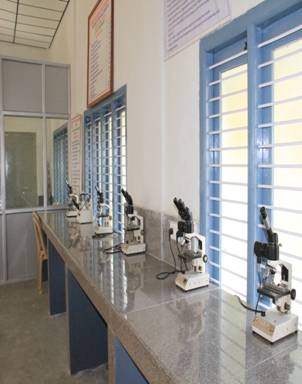

    • Metallurgical microscopes with image capturing facilities.


List of Experiments:

1. Preparation and study of the microstructure of pure metals like Iron, Cu and Al.
2. Preparation and study of the microstructure of low carbon steels, medium carbon steel and high carbon steels.
3. Study of the microstructures of gray cast iron, malleable cast iron and nodular cast iron.
4. Study of the microstructures of brass.
5. Study of the microstructures of heat treated steels.
6. Hardenability of steels by Jominy end quench test.
7. Hardness of various treated and untreated steels.

Laboratory Utilization:


S.No

Laboratory Name

Branch(s)

1

Metallurgy Lab

Mechanical-III Semester

2

Mini Projects

Mechanical , Aerospace

3

Major Projects

Mechanical , Aerospace

4

Project based Lab Experimentation

Mechanical, Aerospace

Metallurgy Lab

Area

200Sq.m

Established in the year

1998

Total investment

Rs.14,78,429/-

Major equipment

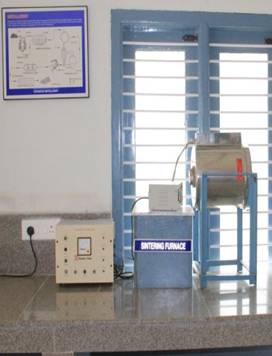

  1. Heating Furnace
  2. Melting Furnace
  3. Metallurgical Microscopes

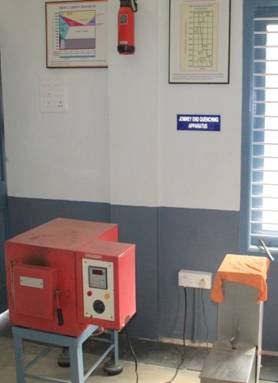

  4. Jominy end quench apparatus

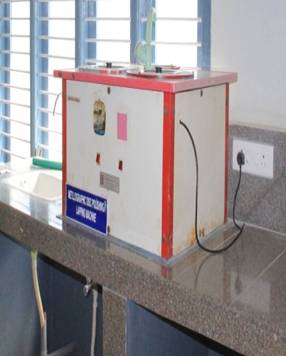

  5. Double disc polishing machine

Faculty in-charge

Mr. R.Praveen kumar

Technician

Sk. Jany



List of equipment:


S. No.

Name of the Equipment/Machinery

Date of purchase

No. of Available

Cost Each in Rs

Amount
Rs/-

01

Pyromatic Jomney End Quench Apparatus,

12-09-00

01

20,352/-

20,352/-

02

Pyromatic Metallography Specimen Mounting Press

12-09-00

01

10,600/-

10,600/-

03

Pyromatic Double Disc Polishing Machine, 10″ dia

12-09-00

01

12,508/-

12,508/-

04

Pyromatic Metallographic Linishiner

12-09-00

01

6,275/-

6,275/-

05

Pyromatic Heat treatment Furnace with digital temperature controller 5″x 5″x 12″

12-09-00

01

11,024/-

11,024/-

06

Specimen Drier

12-09-00

02

466.5/-

933/-

07

Pyromatic Specimen Leveller

12-09-00

01

763/-

763/-

08

Metallurgical Monocular Micro- scopes

12-09-00

03

8,056/-

24,168/-

09

Metallurgical Microscopes - Binocular

12-09-00

02

10,939/-

21,878/-

10

Metallurgical Microscopes- Inverted

12-09-00

01

15,688/-

15,688/-

11

Pyromatic Age Hardening Furnace, 2 ½ kg

13-09-00

01

38,160/-

38,160/-

12

Hand polishing lapping stand

29-10-04

04

3,435/-

13,740/-

13

Electric Tube Cylinder

06-06-06

01

12,946/-

12,946/-

14

Argon gas cylinder

31-07-06

01

13,906/-

13,906/-

15

Ring Timmer

03-02-07

01

572/-

572/-

16*

Integrated Hardness Tester

05-12-07

01

56,118/-

56,118/-

17*

VFM – 9100 Metzer Metavision advance metallurgical Microscope

16-10-09

01

76,857/-

76,857/-

18*

Maxheat Melting Furnace

31-10-09

01

74,768/-

74,768/-

19*

Electronic Tensometer (Model PC-2000)

07-05-10

01

4,60,942/-

4,60,942/-

20*

Wear and Friction Monitor (TR-20LE)

9-11-10

01

4,26,274/-

4,26,274/-

21

Titanium Coated Wear Disc

8-4-11

01

17,843.5/-

17,843.5/-

22

Chromium Coated Wear Disc

8-4-11

01

20,363.5/-

20,363.5/-

23*

Dewinter Trinocular Inverted Metallurgical Microscope

22-12-10

01

1,41,750/-

1,41,750/-



Grand total(fourteen lakh seventy eight thousand four hundred twenty nine rupees only)

14,78,429/-
