Objective:
The objective of this lab is to understand the basic principles in the areas of strength & Mechanics of Materials and Structural Analysis to the under graduate students through a series of experiments. In this lab the experiments are performed to measure the mechanical properties of the materials such as Tensile & compressive strengths, Youngs Modulus, rigidity Modulus, Impact Strength, Hardness, etc.
Laboratory Utilization:
S.No |
Laboratory Name |
Branch(s) |
1 |
Material Testing & Metallurgy Lab |
Mechanical-III Semester |
2 |
Strength of Materials Lab |
Civil-III Semester |
3 |
Fluid Mechanics & Strength of Materials Lab |
Aerospace-III Semester |
5 |
Mini Projects |
Mechanical , Aerospace |
6 |
Major Projects |
Mechanical , Aerospace |
7 |
Project based Lab Experimentation |
Mechanical, Aerospace |
LIST OF EXPERIMENTS:
1. Compression test on helical spring.
2. Tension test on mild steel rod.
3. Double shear test on metals.
4. Torsion test on mild steel rod.
5. Impact test on metal specimen.
(a) Izod Impact Test
(b) Charpy Impact Test
6. Hardness test on metals.
(a) Rockwell Hardness Test
(b) Brinell Hardness Test
7. Deflection test on beams.
(a) Cantilever Beam
(b) Simply Supported beam
8. Compression test on brittle materials
LIST OF EQUIPMENT:
S.No |
Name of the Equipment with Specifications |
Details |
Qty |
Price |
1 |
Universal Testing Machine
(40 Ton) with Accessories |
Model: UTE 40
Maximum Load: 400KN
Maximum Displacement:200mm
Make: FIE |
01 |
3,39,723/- |
2 |
Rockwell cum Brinell Hardness Tester |
Model: RAB 250
Maximum Load: 250kg
Make: Saroj Hardness Tester |
01 |
23,040/- |
3 |
Vicker’s Hardness Tester |
Model: VM 50
Maximum Load: 50Kgf.
Make: FIE |
01 |
88,644/- |
4 |
Impact Testing Machine |
Model: IT 30
Maximum Capacity:300J
Make: FIE |
01 |
53,471/- |
5 |
Torsion Testing Machine |
Model: TT 6
Maximum Capacity: 6Kg.m
Make: FIE |
01 |
89,222/- |
6 |
Spring Testing Machine |
Model: Tensile Tester 1.4F
Maximum Load: 10KN
Make: KMI |
01 |
72,303/- |
7. |
Deflection Beam Apparatus |
-- |
01 |
11,129/- |
R&D Facilities:
- Universal Testing Machine
- Vickers Hardness Tester
Mechanics of Solids Lab Overview |
Area |
176Sq.m |
Established in the year |
1998 |
Total investment |
Rs.6,77,532 /- |
Major equipment |
- Universal Testing Machine
- Torsion Testing Machine
- Rockwell & Brinell Hardness Tester
- Impact Testing Machine
|
Faculty in-charge |
K.V.Viswanadh Asst..Professor |
Technician |
G.SubrahmanyaCharyulu |

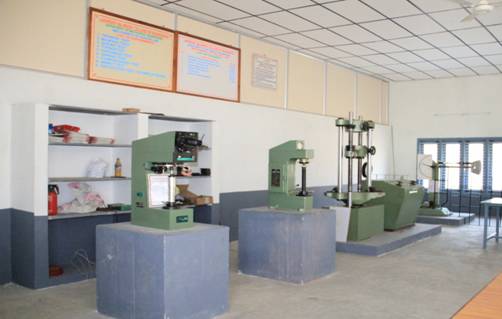

Equipments Photos:

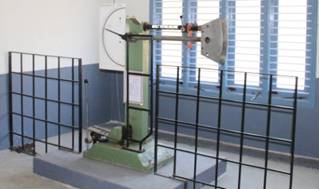

Universal testing Machine Impact Testing Machine

Torsion Testing Machine Spring Testing Machine

Vicker’s Hardness Tester Rockwell & Brinell Hardness tester
|
